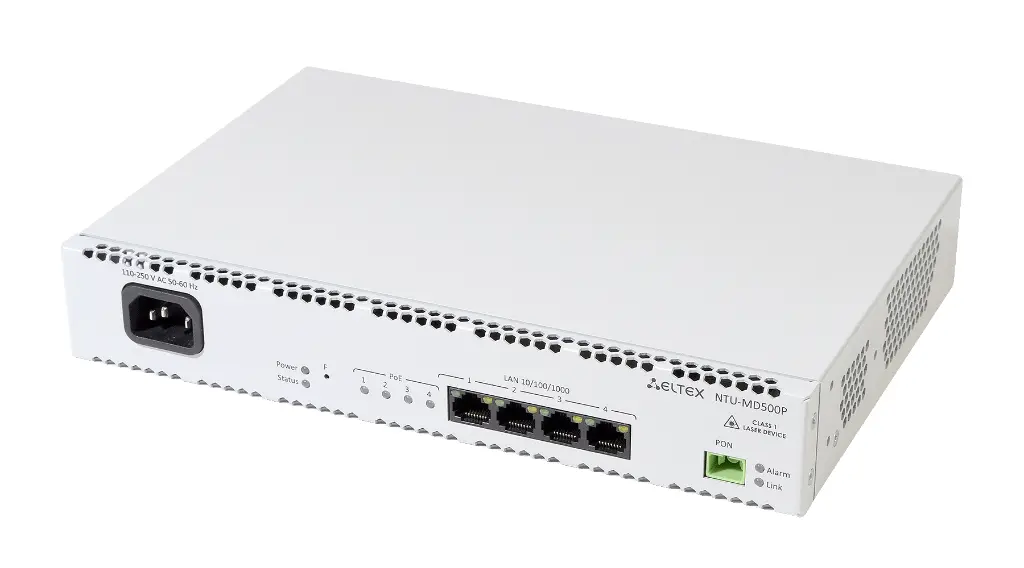

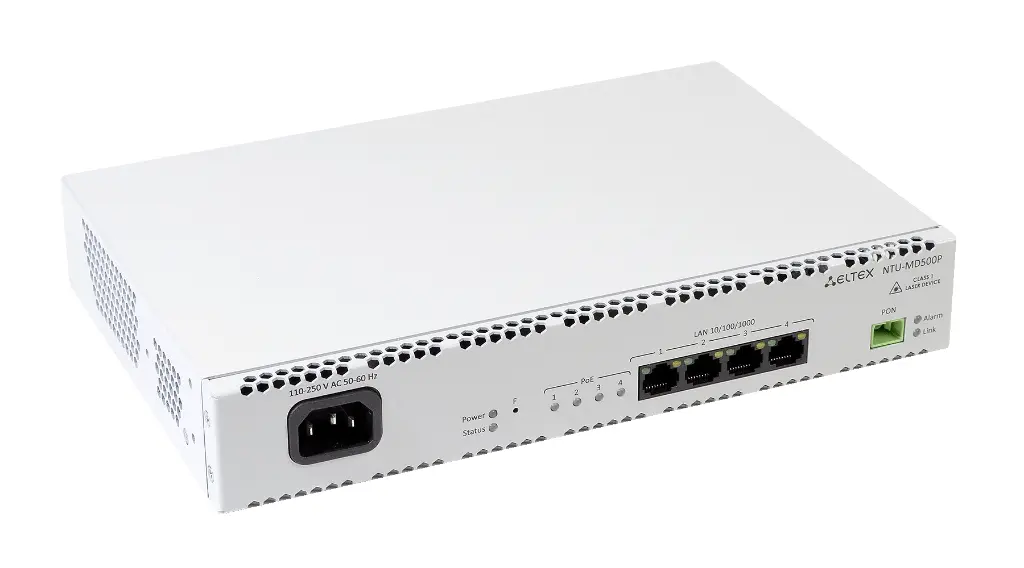

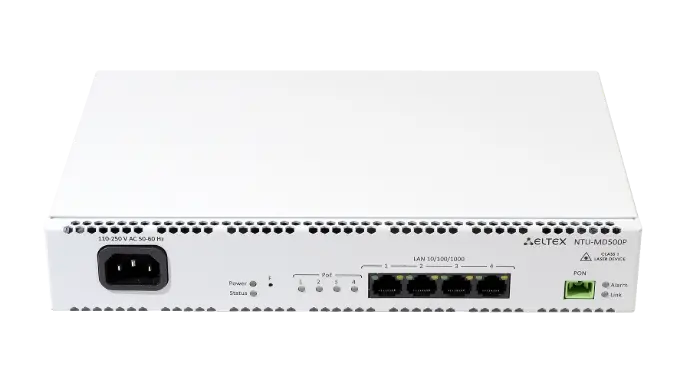

NTU-MD500P

رابط ها:

• GPON - 1
• 10/100/1000BASE-T (RJ-45) PoE - 4

مشخصات فیزیکی و پارامترهای محیطی:

• Power supply - 110-250 VАС, 50-60 Hz
• PoE budget - 65 W
• Dimensions (WxHxD) - 267x44x178 19'', 1U
• Maximum power consumption - 85 W
• Cooling - Passive
• Weight - 1.56 kg
• Operating temperature - from 0 to 40 °C
• Operating humidity - no more than 80% max

پیکربندی و مانیتورینگ:

• PoE managment and monitoring via OMCI:
  • ONU-G::PSE overload yellow
  • ONU-G::PSE overload red
  • Physical path termination point Ethernet UNI::Power control
  • Power over Ethernet control::Operational state
  • Power over Ethernet control::Power detection status
  • Power over Ethernet control::Power classification status
  • Power over Ethernet control::Current Power Consumption
  • Power over Ethernet control::AVC
  • Power over Ethernet control::Power priority
• Group management and monitoring via SNMP-agent OLT, CLI OLT
• In accordance with TR-142:
  • Remote management via OMCI
  • Remote management via TR-069
• Local management via WEB/CLI
• Firmware update: OMCI, TR-069, HTTP, TFTP

پارامترهای رابط PON:

• 1 GPON port
• Accordance with ITU-T G.984.2, ITU-T G.984.5 Filter, FSAN Class B+, SFF-8472
• Connector type — SC/APC
• Transmission medium — single-mode optical fiber — 9/125, G.652
• Maximum operating distance — 20 km
• Transmitter: 1310 nm DFB Laser
  • Data rate: 1244 Mbps
  • Average launch power: +0,5..+5 dBm
  • Spectral line width: 1 nm (-20 dB)
• Receiver: 1490 nm APD/TIA CW Mode
  • Data rate: 2488 Mbps
  • Receiver sensitivity: -28 dBm, BER≤1.0x10
  • Receiver optical overload: -8 dBm

PoE

• Support for IEEE 802.3af PoE (up to 15.4 W/port) and IEEE 802.3at PoE+ (up to 30 W/port)¹ standards on ports
• PoE budget — 65 W

ویژگی های عملیاتی:

• Support for TR-069
• Operation in «bridge» or « router» (including virtual) modes
• Support for PPPoE (auto, PAP, MSCHAP and CHAP authorization)
• Support for IPoE (DHCP-client and static)
• Support for VPN in L2TP mode
• Support for L2TP over IPSec
• Support for IPSec (transport mode)
• DHCP server on the LAN side
• Support for DNS (Domain Name System)
• Support for DynDNS (Dynamic DNS)
• Support for UPNP (Universal Plug and Play)
• Support for NAT (Network Address Translation)
• Support for NTP (Network Time Protocol)
• Support for Quality of Service (QoS) mechanisms
• Support for IGMP Snooping
• Support for IGMP Proxy
• VLAN in accordance with IEEE 802.1Q

استانداردها:

• ITU-T G.984.x
• GPON– ITU-T G.988 OMCI specification
• IEEE 802.1D
• IEEE 802.1p
• IEEE 802.1P
• IEEE 802.3af
• IEEE 802.3at

1The power consumption of each port is measured and calculated in real time. The total power consumption for all ports is compared with the power budget (65 W). When the power consumption reaches the power budget threshold, the low-priority ports are shut down.
