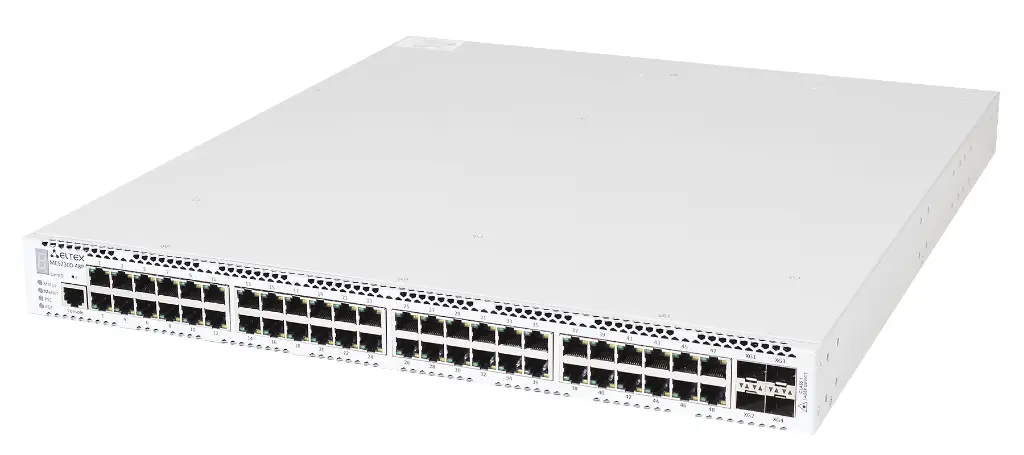

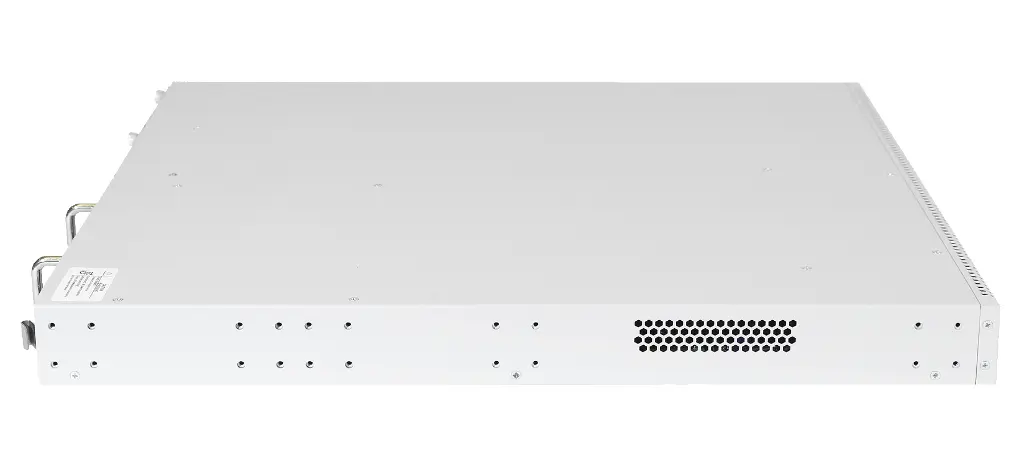

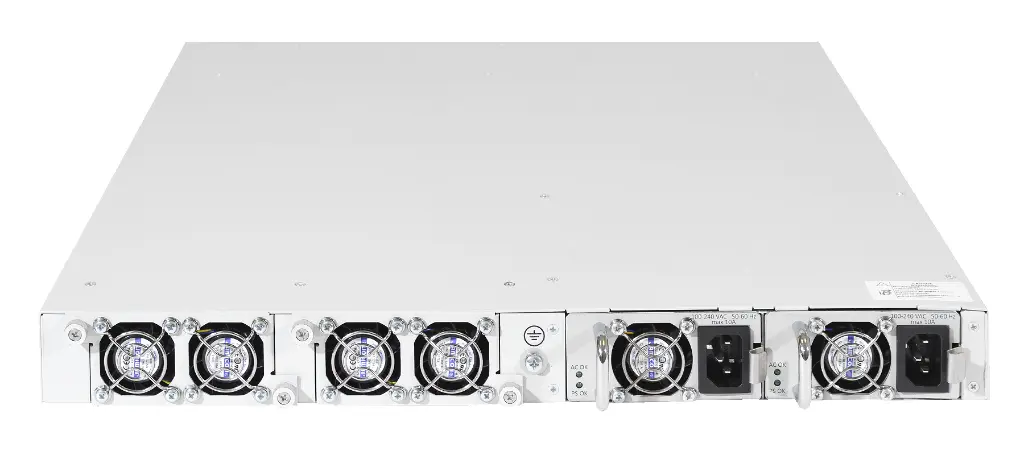

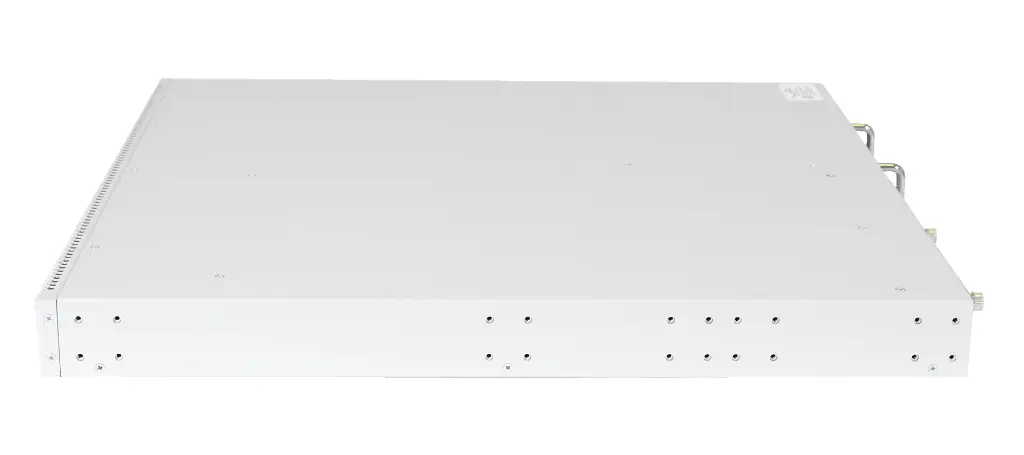

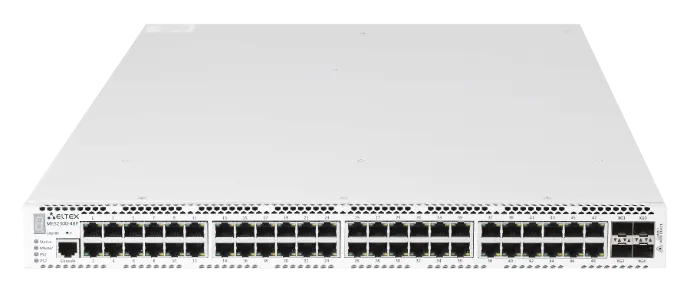

MES2300-48P

رابط ها

• 10/100/1000BASE-T (RJ-45) PoE/PoE+ - 48
• 10GBASE-R (SFP+)/1000BASE-X (SFP) - 4
• Console port RS-232 (RJ-45) - 1

عملکرد

• Bandwidth - 176 Gbps
• Throughoutput for 64 bytes¹ - 130.95 MPPS
• Buffer memory - 3 MB
• RAM (DDR4) - 2 GB
• ROM (RAW NAND) - 512 MB
• MAC table - 16384
• ARP table2 - 2039
• VLAN table - 4094
• L2 Multicast groups - 2048
• SQinQ rules - 988 (ingress), 988 (egress)
• MAC ACL rules - 1966
• IPv4/IPv6 ACL rules - 1975/988
• L3 IPv4 Unicast routes3 - 4066
• L3 IPv6 Unicast routes3 - 1015
• L3 IPv4 Multicast (IGMP Proxy, PIM) routes3 - 2029
• L3 IPv6 Multicast (IGMP Proxy, PIM) routes3 - 505
• VRRP routers - 255
• Maximum size of ECMP groups - 8
• VRF number - 16 (including default VRF)
• L3 interfaces - 2032
• Link Aggregation Groups (LAG) - 32, up to 8 ports in one LAG
• Quality of Service (QoS) - 8 egress queues per port
• Jumbo frames - 10240 bytes
• Stacking - 8 devices

ویژگی های رابط ها

• Head-of-line blocking (HOL) protection
• Back Pressure
• Auto MDI/MDIX
• Jumbo Frames
• Flow Control (IEEE 802.3X)
• Port Mirroring (SPAN, RSPAN)
• Stacking

ویژگی های آدرس MAC

• Independent learning mode per VLAN
• MAC Multicast Support
• Configurable aging time of MAC addresses
• Static MAC Entries
• MAC Flapping

پشتیبانی از VLAN

• Voice VLAN
• 802.1Q
• Q-in-Q
• Selective Q-in-Q
• GVRP

ویژگی های Multicast لایه 2

• Multicast profiles
• Static Multicast groups
• IGMP Snooping v1,2,3
• Host/port-based IGMP Snooping Fast Leave
• Pim-Snooping
• IGMP proxy-report
• IGMP authorization through RADIUS
• MLD Snooping v1,2
• IGMP Querier
• MVR

ویژگی های L2

• STP (Spanning Tree Protocol, IEEE 802.1d)
• RSTP (Rapid Spaning Tree Protocol, IEEE 802.1w)
• MSTP (Multiple Spanning Tree Protocol, IEEE802.1s)
• PVSTP+
• RPVSTP+
• Spanning Tree Fast Link option
• STP Root Guard
• BPDU Filtering
• STP BPDU Guard
• Loopback Detection
• ERPS (G.8032v2)
• Flex-link
• Private VLAN
• Layer 2 Protocol Tunneling (L2PT)

ویژگی های L3

• IP routes
• RIPv2, OSPFv2, OSPFv3, IS-IS (IPv4 Unicast), BGP4 (IPv4 Unicast, IPv4 Multicast)
• BFD protocol (for BGP)
• Address Resolution Protocol (ARP)
• Proxy ARP
• Policy-Based Routing (IPv4
• VRRP
• Multicast dynamic routing protocols PIM SM, PIM DM, IGMP Proxy, MSDP
• ECMP Load Balancing
• IP Unnumbered
• VRF lite

ویژگی های Link Aggregation

• LAG group creation
• LACP
• LAG Balancing Algorithm
• Multi-Switch Link Aggregation Group (MLAG)

پشتیبانی از IPV6

• IPv6 Host
• Dual-stack IPv4, IPv6

ویژگی های سرویس

• Virtual Cable Testing (VCT)
• Optical transceiver diagnostics
• Green Ethernet

ویژگی های امنیتی

• Protection against unauthorized DHCP servers (DHCP Snooping)
• DHCP option 82
• IP Source Guard
• Dynamic ARP Inspection
• First Hop Security
• sFlow
• MAC-based authentication, Port Security, Static MAC entries
• Port-based authentication IEEE 802.1x
• Guest VLAN
• DoS attack prevention
• Traffic segmentation
• DHCP clients filtering
• BPDU attack prevetion
• NetBIOS/NetBEUI filtering

Quality of Service (QoS)

• QoS statistics
• Shaping, policing
• IEEE 802.1p Class of Service
• Storm Control for different traffics (broadcast, multicast, unknown unicast)
• Bandwidth management
• Strict priority/Weighted Round Robin (WRR) scheduling algorithms
• Three marking colors
• ACL-based CoS/DSCP mark assignment
• ACL-based VLAN mark assignment
• Setting the IEEE 802.1p priority for management VLAN
• DSCP to CoS, CoS to DSCP remarking
• 802.1p DSCP mark assignment for IGMP

ОАМ

• 802.3ah Ethernet Link OAM
• 802.3ah Unidirectional Link Detection

Access Control Lists (ACL)

• L2-L3-L4 ACL (Access Control List)
• Time-Based ACL
• IPv6 ACL
• ACL based on:
  • Switch port
  • 802.1p priority
  • VLAN ID
  • EtherType
  • DSCP
  • Protocol type
  • TCP/UDP port number
  • User Defined Bytes

ویژگی های مدیریتی

• Upload/download of configuration file and firmware via TFTP
• SNMP (Simple Network Management Protocol)
• CLI (Command Line Interface)
• Web interface
• Syslog
• SNTP (Simple Network Time Protocol)
• Traceroute
• LLDP (802.1ab) + LLDP MED
• TACACS+
• Switch access control — Privilege levels for users
• Management interface blocking
• Local authentication
• IP addresses filtering for SNMP
• RADIUS, TACACS+ (Terminal Access Controller Access Control System) clients
• SSH, Telnet server
• SSH, Telnet client
• SSL
• Macrocommands support
• CLI commands logging
• System log
• DHCP autoprovision
• DHCP Relay (Option 82)
• DHCP Option 12
• Debugging commands
• Rate limit of traffic to CPU
• Password encryption
• Password recovery
• Ping (IPv4/IPv6)

ویژگی های مانیتورینگ

• Interface statistics
• RMON/SMON
• IP SLA
• CPU utilization monitoring per task and traffic type
• Random Access Memory (RAM)
• Temperature monitoring
• TCAM monitoring

MIB/IETF

• RFC 1065, 1066, 1155, 1156, 2578 MIB Structure
• RFC 1212 Concise MIB Definitions
• RFC 1213 MIB II
• RFC 1215 MIB Traps Convention
• RFC 1493, 4188 Bridge MIB
• RFC 1157, 2571-2576 SNMP MIB
• RFC 1901-1908, 3418, 3636, 1442, 2578 SNMPv2 MIB
• RFC 1271, 1757, 2819 RMON MIB
• RFC 2465 IPv6 MIB
• RFC 2466 ICMPv6 MIB
• RFC 2737 Entity MIB
• RFC 4293 IPv6 SNMP Mgmt Interface MIB
• Private MIB
• RFC 3289 DIFFSERV MIB
• RFC 2021 RMONv2 MIB
• RFC 1398, 1643, 1650, 2358, 2665, 3635 Ether-like MIB
• RFC 2668 802.3 MAU MIB
• RFC 2674, 4363 802.1p MIB
• RFC 2233, 2863 IF MIB
• RFC 2618 RADIUS Authentication Client MIB
• RFC 4022 MIB for TCP
• RFC 4113 MIB for UDP
• RFC 2620 RADIUS Accounting Client MIB
• RFC 2925 Ping & Traceroute MIB
• RFC 768 UDP
• RFC 791 IP
• RFC 792 ICMPv4
• RFC 2463, 4443 ICMPv6
• RFC 4884 Extended ICMP to support Multi-Part Messages
• RFC 793 TCP
• RFC 2474, 3260 Definition of the DS field in the IPv4 and IPv6
• RFC 1321, 2284, 2865, 3580, 3748 Extensible Authentication Protocol (EAP)
• RFC 2571, RFC2572, RFC2573, RFC2574 SNMP
• RFC 826 ARP
• RFC 854 Telnet
• IEC 61850

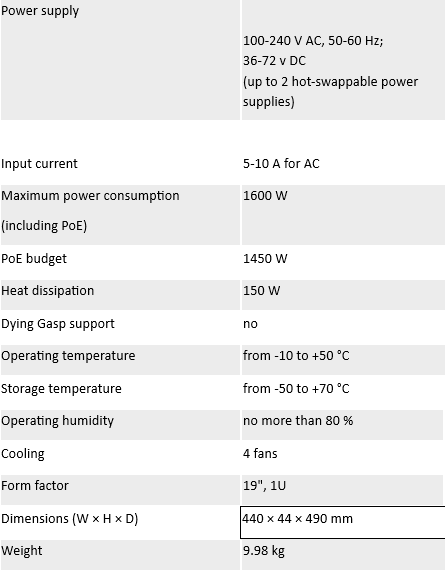

مشخصات فیزیکی و پارامترهای محیطی

1 Values are given for one-way transmission.

2 For each host in the ARP table, an additional entry is created in the switching table.

3 IPv4/IPv6 Unicast/Multicast routes use shared hardware resources.

4 BGP protocol support is provided under license.
